Warehouse Wi-Fi & RF Heatmap Survey

Wireless Physics vs. Reality

Why Standard Wi-Fi Setups Crash in Canadian Supply Chain Environments

When an IT vendor treats a 300,000 sq.ft. warehouse like an open office, the physics of radio waves guarantee catastrophic network failure under real inventory load.

Typical Warehouse Wi-Fi Pitfalls

The "Ceiling Scatter" Trap: Omnidirectional access points mounted 35 feet up blast signal into open roof space while concrete floors and metal racking starve floor workers.
Extreme Co-Channel Interference (CCI): Adding more APs without directional antenna control creates channel overlap, driving packet collisions and latency past 400ms.
The "Sticky Client" Problem: Vehicle-mounted tablets hold onto a distant access point (-82 dBm) rather than roaming to the AP 15 feet overhead, causing complete WMS disconnects.
Inventory Seasonal Blindness: A network that works when warehouse racks are empty fails completely in November when pallets of liquids and dense paper absorb 90% of RF energy.

The QueryTel Engineered RF Solution

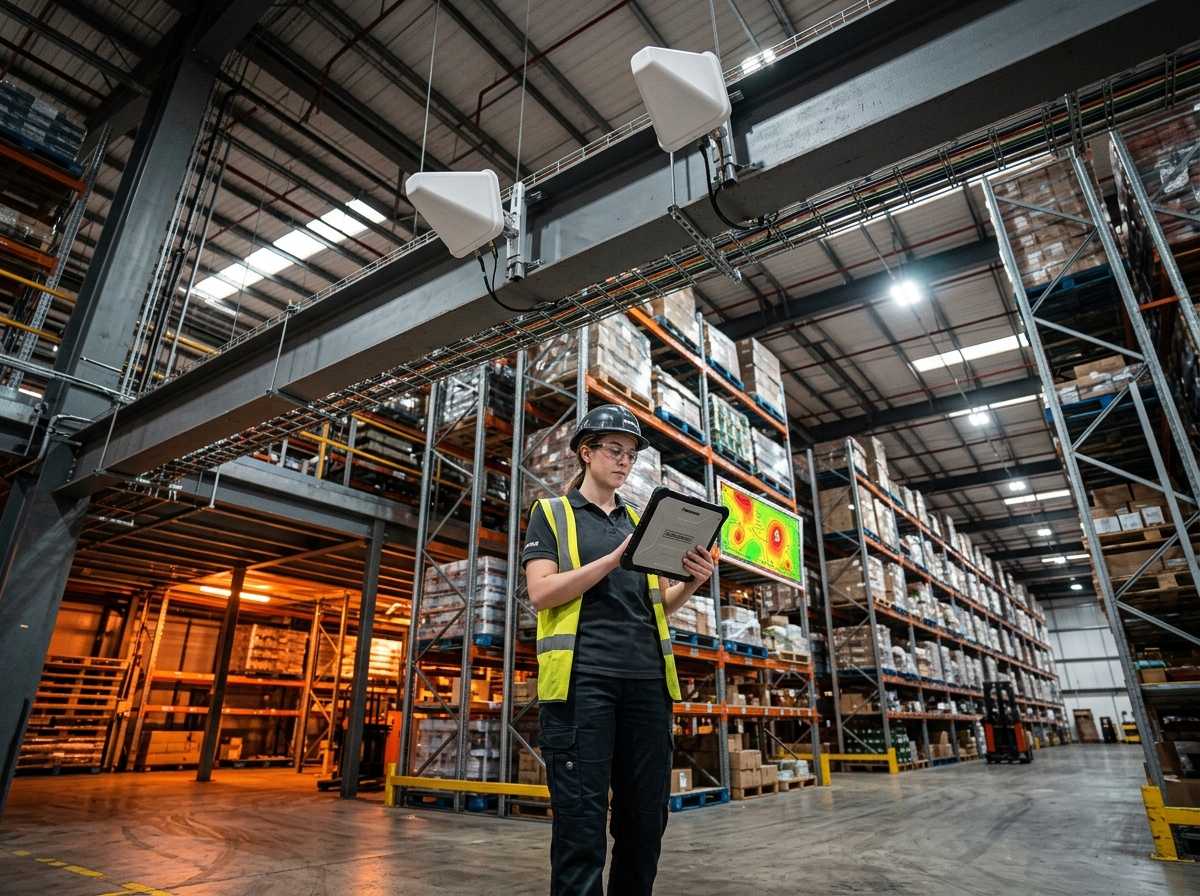

Down-Tilt Directional Patch Antennas: Precision 60° x 30° narrow-beam antennas shoot cone-shaped beams straight down rack aisles, delivering -62 dBm directly to scanners.
Non-Overlapping Channel Planning: Dynamic frequency selection (DFS) and 20 MHz channel channelization in the 5 GHz band eliminate co-channel interference entirely.
Forced Fast BSS Transition (802.11r/k/v): Roaming parameters force clients to switch APs in under 10 milliseconds, ensuring forklifts maintain uninterrupted WMS telnet sessions.
100% Stocked Attenuation Modeling: Every simulation models the exact material absorption of your facility at maximum capacity, ensuring robust coverage 365 days a year.

RF Engineering Specs

Industrial Wi-Fi Hardware, Protocols & Heatmap Deliverables

We combine cutting-edge spectrum analyzer hardware with tier-1 enterprise wireless controllers to build networks that stand up to industrial vibration, moisture, and high client density.

Ekahau Sidekick 2 3D Modeling

We capture precise signal strength (RSSI), signal-to-noise ratio (SNR), channel interference, and round-trip time (RTT) with the industry's most advanced quad-radio spectrum analyzer.

• Comprehensive 3D attenuation wall profiling
• Dual-band 2.4 GHz & 5 GHz spectrum visualization
• Detailed executive PDF heatmap deliverables

AP-on-a-Stick (APaaS) Validation

Before pulling cables, we hoist production enterprise APs on 40-foot telescoping pneumatic masts inside your facility to validate real-world physical signal penetration through live pallet racking.

• Eliminates costly post-install AP relocations
• Real-time throughput and iPerf packet loss tests
• Exact unistrut and beam-clamp mounting mapping

Directional Narrow-Beam Antennas

High-gain patch and sector antennas (Ventev, AccelTex, Cisco) engineered specifically for high-bay racking aisles. Constrains RF energy between metal uprights, preventing cross-channel bleeding.

• 60° horizontal x 30° vertical beamwidths
• Articulating industrial mounts for precise down-tilt
• Low-loss coaxial jumpers with weather seals

Fast Roaming (802.11k/r/v)

We fine-tune wireless controller firmware so moving clients seamlessly transition between APs without re-authenticating with the RADIUS/WPA2-Enterprise server, preserving terminal sessions.

• Sub-10ms handover time across access points
• Enforced minimum basic data rates (disables 1-11 Mbps)
• Proactive BSS transition management

Industrial Enterprise Hardware

Cisco Catalyst 9120/9130AX, Fortinet FortiAP 431F, and Aruba 500 Series industrial access points paired with PoE+ managed multi-gigabit switches with redundant power supplies.

• Sourced via BrokerBand at volume discounts
• IP67 ruggedized exterior casing options
• Centralized cloud or on-prem wireless controllers

Spectrum Interference Hunting

Non-Wi-Fi RF interference from industrial microwave drying ovens, Bluetooth frequency-hopping beacons, faulty motion sensors, and wireless crane remotes are identified and neutralized.

• Real-time FFT waterfall spectrum capture
• Rogue AP and wireless intrusion detection (WIPS)
• Clean RF floor with guaranteed 25 dB SNR

Our Engineering Process

How We Deliver High-Reliability Warehouse Wi-Fi

A disciplined, data-driven approach that removes the guesswork from industrial wireless deployments.

01

CAD Import & Predictive 3D Design

We load your architectural floorplans into Ekahau, assign exact wall and rack attenuation properties, and simulate optimal AP counts, heights, and antenna azimuths.

02

On-Site AP-on-a-Stick Validation

Our engineers walk your live facility with battery-powered AP masts and Sidekick 2 units to physically test predictive models against real machinery and inventory.

03

Off-Shift Rigging & Fiber Drops

Our scissor-lift certified cabling crews install unistrut drops, industrial conduit, and CAT6A shielded cabling during non-operational hours to prevent floor disruption.

04

Post-Install Validation & NOC Monitoring

A comprehensive post-installation survey proves -62 dBm coverage across 100% of aisles. The network is integrated into our 24/7 Canadian NOC for telemetry monitoring.

Canadian Nationwide Deployment

Mobile Ekahau Field Survey Teams Dispatched Across Canada

Headquartered at Exchange Tower, 130 King Street West, Suite 1900, Toronto, Ontario M5X 1E3, QueryTel deploys certified wireless field engineering vans equipped with calibrated telescoping masts, Sidekick 2 units, and industrial scissor lift equipment across the entire GTA and major national logistics hubs.

Whether your facility is in the Peel logistics core (Brampton, Mississauga, Vaughan) or a national distribution hub in Western Canada, we provide rapid on-site survey turnaround:

Toronto & GTA Corridor Calgary: (403) 691-1018 Vancouver & Surrey Hub Edmonton: (780) 628-2868

Integrated Supply Chain IT Solutions

Ensure your end-to-end warehouse technology ecosystem is engineered for seamless interoperability:

Cold Storage & Warehouse IT Overview

-40°C structured cabling, server room MDFs, and resilient logistics networks.

Zebra Rugged Mobility, RFID & WMS Integration

Vehicle mounts, handheld scanners, label print engines, and MDM configuration.

AI Surveillance & Automated LPR Truck Gates

Automated dispatch gate control, trailer seal verification, and dock surveillance.

Complete Warehouse Infrastructure Architecture

Review our reference physical-to-cloud infrastructure design.

Technical Questions

Warehouse Wi-Fi & RF Engineering FAQ

Straightforward technical answers for supply chain IT decision makers.

Omnidirectional access points radiate signal in a 360-degree 'donut' pattern. When mounted 30 to 45 feet up on steel ceiling joists, the vast majority of the signal reflects off the metal roof deck or is completely absorbed by the tops of steel racks. Down at floor level where workers operate, the signal is weak (-75 dBm or worse) and plagued by multipath distortion. QueryTel deploys down-tilt narrow-beam directional patch antennas (typically 60° x 30° beamwidth) aimed directly down each aisle corridor to deliver strong, focused RF coverage (-62 dBm or better) right to the floor.

A predictive survey uses high-resolution CAD drawings, laser ceiling measurements, and material attenuation values (steel shelving, palletized liquids, paper stock, freezer walls) within Ekahau software to simulate optimal AP locations and antenna patterns. An Active AP-on-a-Stick survey physically tests a live industrial AP elevated on a mobile pneumatic mast inside your actual facility to measure real-world reflection, attenuation, and co-channel interference before running a single cable.

Session dropouts occur when clients delay roaming to a closer AP (the 'sticky client' problem) or when roaming handshakes exceed timeout thresholds. We tune client roaming aggressiveness, enforce 802.11k (neighbor reports), 802.11r (Fast BSS Transition with pre-authentication), and 802.11v (BSS transition management), and ensure a minimum of 20% cell overlap (-65 dBm) at all cross-aisles.

Inventory density is the number one cause of unexpected Wi-Fi failure during Q4 peak season. An empty warehouse rack has an attenuation of roughly 2 to 4 dB. That same rack filled with high-density paper products absorbs 10 to 15 dB; filled with canned beverages or liquid drums, it attenuates 20 to 30 dB—acting as an impenetrable RF shield. QueryTel designs all wireless networks based on 100% capacity worst-case attenuation models.

QueryTel is an authorized enterprise partner for Cisco Catalyst 9100 Series industrial access points, Fortinet FortiAP enterprise controllers, and Aruba/HPE networking. We source all hardware through our procurement division BrokerBand with enterprise pre-configuration, custom mounting hardware, and lifetime hardware warranty options.

On-Site RF Audit

Eliminate Wi-Fi Blind Spots Across Your Distribution Center

Request an on-site Ekahau RF survey with a certified QueryTel wireless network engineer. We’ll measure exact aisle attenuation, identify interference, and deliver an actionable optimization roadmap.

Book a Free Warehouse RF Heatmap & IT Audit Call 1-844-447-8379

Deliverables include complete Ekahau 3D visualization reports and engineering BOM.
